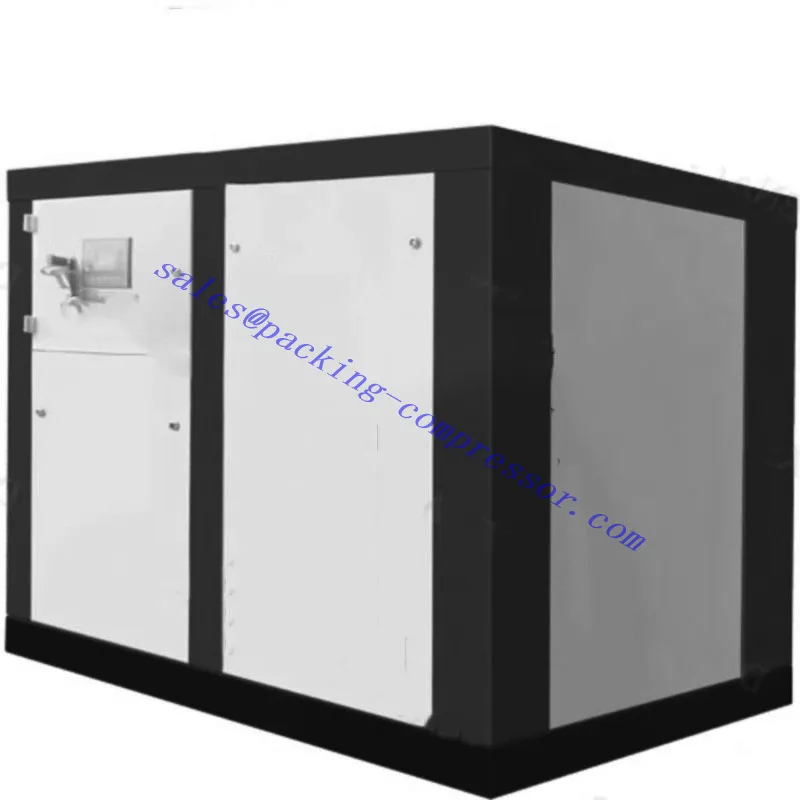

Electric lubricated twin-screw packaging machine air compressor

As one of the packing compressor manufacturers, suppliers, and exporters of mechanical products, We offer packing compressor and many other products.

Please get in touch with us for details.

Mail:[email protected]

Packing Compressor

ep-packing-compressor-3bacj

Packing compressors are a form of compressor that makes use of packing to make sure that the piston and cylinder are sealed. It is composed of a set of rings that are compressed between the piston and the cylinder's wall. This seals the cylinder and stops gas from flowing through the piston.

The packing compressor is typically employed in situations that require high pressure. They can also be used in situations where the compressed gas is toxic or corrosive. The compressors for packing can be found in a variety of capacities and sizes. They are available as one-stage or multi-stage.

Single-stage compressors for packing are the most straightforward type of packing machine. They comprise three components: a cylinder, a piston, and packing. It is powered by the crankshaft. It can compress the gas when it is moved through the cylinder. The packing seals the piston as well as the cylinder, preventing gas from leakage through the piston.

Packing Compressor Technical Parameters

Model  working Capacity(FAD)* Installed motor power Driving mode& Noise Dimensions(mm) Weight Air outlet
pressure 50 HZ 60 HZ Cooling method level** pipe diameter
bar(g) psig m3/min cfm m3/min cfm kw hp dB(A) L W H kg
5 7.5 109 0.80 28 0.80 28 5.5 7.5 Belt Driven 75 900 600 860 315 G3/4"
8.5 123 0.78 28 0.78 28 5.5 7.5 Air Cooling 75 900 600 860
7 7.5 109 1.09 39 1.09 39 7.5 10 75 900 600 860 315 G3/4"
8.5 123 1.07 38 1.07 38 7.5 10 75 900 600 860
10.5 152 0.92 32 0.91 32 7.5 10 75 900 600 860
13.0 189 0.73 26 0.72 26 7.5 10 75 900 600 860
11 7.5 109 1.66 59 1.66 59 11 15 75 1230 650 900 324 G3/4"
8.5 123 1.64 58 1.64 58 11 15 75 1230 650 900
10.5 152 1.45 51 1.45 51 11 15 75 1230 650 900
13.0 189 1.13 40 1.12 40 11 15 75 1230 650 900
15 7.5 109 2.54 90 2.53 89 15 20 Direct Driven 75 1465 990 1345 453 G1-1/4"
8.5 123 2.51 88 2.50 88 15 20 Air Cooling 75 1465 990 1345
10.5 152 1.97 70 1.86 66 15 20 75 1465 990 1345
13.0 189 1.91 67 1.83 65 15 20 75 1465 990 1345
18 7.5 109 3.04 107 3.65 129 18.5 25 75 1465 990 1345 453 G1-1/4"
8.5 123 3.03 107 3.63 128 18.5 25 75 1465 990 1345
10.5 152 3.00 106 2.38 84 18.5 25 75 1465 990 1345
13.0 189 1.91 67 2.36 83 18.5 25 75 1465 990 1345
22 7.5 109 3.57 126 3.65 129 22 30 75 1465 990 1345 477 G1-1/4"
8.5 123 3.55 125 3.63 128 22 30 75 1465 990 1345
10.5 152 3.00 106 2.38 84 22 30 75 1465 990 1345
13.0 189 2.97 105 2.36 83 22 30 75 1465 990 1345
30 7.5 109 5.28 187 4.49 159 30 40 85 1600 1250 1550 682 G1-1/2"
8.5 123 5.26 186 4.48 158 30 40 85 1600 1250 1550
10.5 152 5.21 184 4.47 158 30 40 85 1600 1250 1550
13.0 189 3.45 122 3.58 126 30 40 85 1600 1250 1550
37 7.5 109 6.54 231 6.33 224 37 50 85 1600 1250 1550 728 G1-1/2"
8.5 123 6.52 230 6.30 222 37 50 85 1600 1250 1550
10.5 152 5.21 184 4.47 158 37 50 85 1600 1250 1550
13.0 189 5.16 182 4.43 156 37 50 85 1600 1250 1550
45 7.5 109 7.67 271 7.79 275 45 60 85 1600 1250 1550 728 G1-1/2"
8.5 123 7.62 269 7.76 574 45 60 85 1600 1250 1550
10.5 152 6.46 228 6.24 220 45 60 85 1600 1250 1550
13.0 189 6.41 226 4.44 157 45 60 85 1600 1250 1550
55 7.5 109 9.76 345 9.14 323 55 75 85 1876 1326 1700 1310 G2"
8.5 123 9.67 342 9.06 320 55 75 85 1876 1326 1700
10.5 152 7.53 266 7.74 273 55 75 85 1876 1326 1700
13.0 189 7.40 261 6.30 222 55 75 85 1876 1326 1700
75 7.5 109 14.21 502 11.72 414 75 100 85 1876 1326 1700 1325 G2"
8.5 123 12.55 443 11.63 411 75 100 85 1876 1326 1700
10.5 152 9.51 336 11.43 404 75 100 85 1876 1326 1700
13.0 189 9.23 326 8.75 309 75 100 85 1876 1326 1700
90(W) 7.5 109 16.62 587 17.01 601 90 120 Direct Driven 72 2450 1800 1700 2450 DN80
8.5 123 16.37 578 16.82 594 90 120 Air Cooling Or 72 2450 1800 1700
10.5 152 14.21 502 14.87 525 90 120 Water Cooling 72 2450 1800 1700
13.0 189 11.77 416 11.27 398 90 120 72 2450 1800 1700
110(W) 7.5 109 20.13 711 19.10 674 110 150 72 2450 1800 1700 2500 DN80
8.5 123 20.05 708 19.06 673 110 150 72 2450 1800 1700
10.5 152 16.33 576 17.01 601 110 150 72 2450 1800 1700
13.0 189 14.11 498 14.68 518 110 150 72 2450 1800 1700
132(W) 7.5 109 22.85 807 24.37 861 132 175 72 2450 1800 1700 2600 DN80
8.5 123 22.73 802 24.23 856 132 175 72 2450 1800 1700
10.5 152 19.88 702 18.95 669 132 175 72 2450 1800 1700
13.0 189 16.51 583 16.82 594 132 175 72 2450 1800 1700
160(W) 7.5 109 26.92 950 27.90 985 160 215 78 2650 1700 1850 3200 DN80
8.5 123 26.86 949 27.76 980 160 215 78 2650 1700 1850
10.5 152 22.44 792 23.97 846 160 215 78 2650 1700 1850
13.0 189 19.63 693 18.82 664 160 215 78 2650 1700 1850
185(W) 7.5 109 28.89 1020 30.53 1078 185 250 78 2650 1700 1850 3300 DN80
8.5 123 28.84 1018 30.44 1075 185 250 78 2650 1700 1850
10.5 152 25.11 886 27.46 970 185 250 78 2650 1700 1850
13.0 189 22.08 780 23.69 836 185 250 78 2650 1700 1850
200(W) 7.5 109 31.88 1126 30.53 1078 200 270 80 3000 1950 2030 4750 DN100
8.5 123 31.82 1124 30.44 1075 200 270 80 3000 1950 2030
10.5 152 28.48 1006 30.22 1067 200 270 80 3000 1950 2030
13.0 189 25.00 883 27.07 956 200 270 80 3000 1950 2030
220(W) 7.5 109 36.20 1278 37.22 1314 220 300 80 3000 1950 2030 4800 DN100
8.5 123 36.15 1276 37.17 1312 220 300 80 3000 1950 2030
10.5 152 31.71 1120 33.25 1174 220 300 80 3000 1950 2030
13.0 189 28.48 1006 27.07 956 220 300 80 3000 1950 2030
250(W) 7.5 109 43.31 1529 42.87 1514 250 350 80 3000 1950 2030 4850 DN100
8.5 123 43.24 1527 41.30 1458 250 350 80 3000 1950 2030
10.5 152 36.03 1272 37.04 1308 250 350 80 3000 1950 2030
13.0 189 31.55 1114 33.15 1170 250 350 80 3000 1950 2030
280(W) 7.5 109 46.59 1645 47.16 1665 280 375 85 3700 2300 2450 5200 DN125
8.5 123 46.53 1643 45.64 1612 280 375 85 3700 2300 2450
10.5 152 42.95 1516 42.56 1503 280 375 85 3700 2300 2450
13.0 189 35.89 1267 36.95 1305 280 375 85 3700 2300 2450
315(W) 7.5 109 53.16 1877 50.88 1797 315 425 85 3700 2300 2450 6000 DN125
8.5 123 52.63 1858 50.83 1795 315 425 85 3700 2300 2450
10.5 152 43.05 1520 46.27 1634 315 425 85 3700 2300 2450
13.0 189 42.93 1516 40.32 1424 315 425 85 3700 2300 2450
355(W) 7.5 109 63.37 2238 58.12 2052 355 475 85 4500 2500 2450 7000 DN125
8.5 123 63.16 2230 56.54 1997 355 475 85 4500 2500 2450
10.5 152 52.63 1858 51.57 1821 355 475 85 4500 2500 2450
13.0 189 43.79 1546 45.35 1601 355 475 85 4500 2500 2450
400(W) 7.5 109 70.99 2507 61.72 2179 400 550 85 4500 2500 2450 8000 DN125
8.5 123 70.64 2494 59.72 2109 400 550 85 4500 2500 2450
10.5 152 52.63 1858 56.52 1996 400 550 85 4500 2500 2450
13.0 189 46.34 1636 51.35 1813 400 550 85 4500 2500 2450
